Switchblade LIVE PRODUCTION UNIT M9 / M9 Pro
|
Processor |
6-core Intel Core i5 |
8-core Intel Core i7 |
|
Graphics |
NVIDIA GeForce GTX series, |
NVIDIA GeForce RTX series, |
|
Video Inputs |
Four (4) HDMI 1.4 or 3G-SDI inputs |
|
|
Audio Inputs/Outputs |
3.5mm (1/8″) stereo line-in / line-out / microphone-in |
Professional 2-channel stereo 1/4″ TRS analog inputs and outputs (4-in/4-out) |
|
Storage |
1TB NVMe PCIe Solid State Drive (SSD) |
|
|
Networking |
2.5Gbps Ethernet, Wi-Fi 6 |
|
|
Dimensions |
319mm x 172mm x 358mm |
|
|
Software Version |
vMix HD |
vMix 4K (Upgradeable to vMix Pro) |
|
Max Input Resolution |
1920 x 1080 |
4096 x 2160 |
|
Graphic Overlays |
4 |
4 |
|
Recorder |
1 channel recording |
2 channel recording |
|
Streaming Outputs |
3 RTMP streaming outputs (Facebook, YouTube, custom URL) |
|
|
NDI Inputs |
Unlimited inputs (depending on video and project settings) |
|
|
NDI Outputs |
1 |
4 |
|
SRT Inputs |
Unlimited inputs (depending on video and project settings) |
|
|
SRT Outputs |
1 |
4 |
|
Fullscreen Output |
1 |
2 |
|
External Output |
1 |
4 |
|
Virtual Sets |
Built-in and customizable virtual sets with full motion zoom and high-quality chroma keying |
|
|
Titling Software Included (All Versions) |
GT Designer Standard – Includes 100+ Built-In Animated Titles, Scoreboards, Tickers |
|
|
Titling Software Included (vMix 4K & Higher) |
N/A |
GT Designer Advanced – Build custom animated titles, including using layered Adobe PSD files |
|
Playlist |
Switch between multiple live inputs or prerecorded videos without manual intervention. |
|
|
Video List |
Create playlists of video files to play in sequence – a great way to stream prerecorded content when your event is offline. |
|
|
Remote Callers (vMix call) |
1 caller |
4 callers |
|
Color Correction |
Professional color correction on every input, including lift, gamma, gain, luminance, hue, saturation with real-time vectorscope monitoring. |
|
Switchblade LIVE PRODUCTION UNIT (LPU)

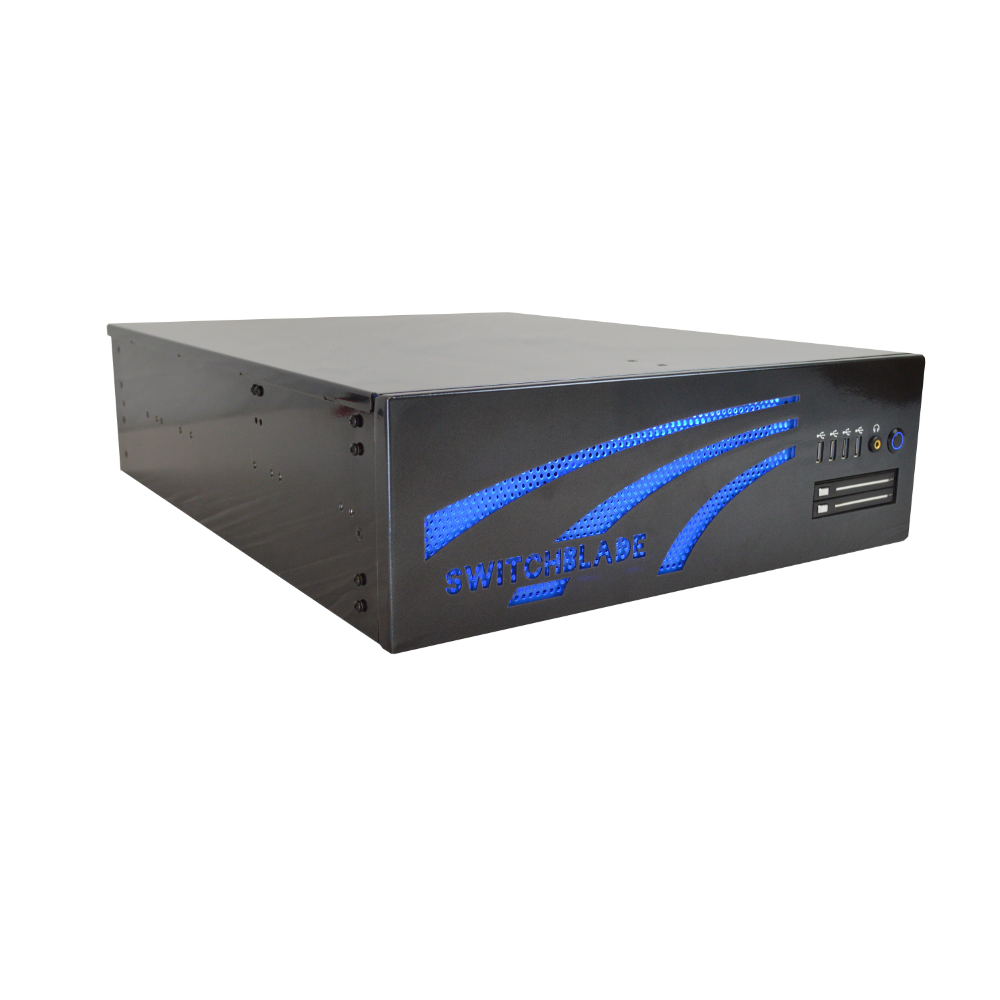

3U Rack Production Switcher
Switchblade LPU3 win Control Surface
- 16 SDI Inputs 3G/12G IO
- 2 XLR Inputs / 2 XLR Outputs
- 2 10gig SFP for demanding NDI applications
- 2 1 gig Ethernet for streaming and control
- 2 Hotswap SSD bays
- 10 USB 3.1 / USB 3.2 / USB C
- 4 Displayport for UI, Program, Preview, or Multiview
|
|
|
|
|
|
Model |

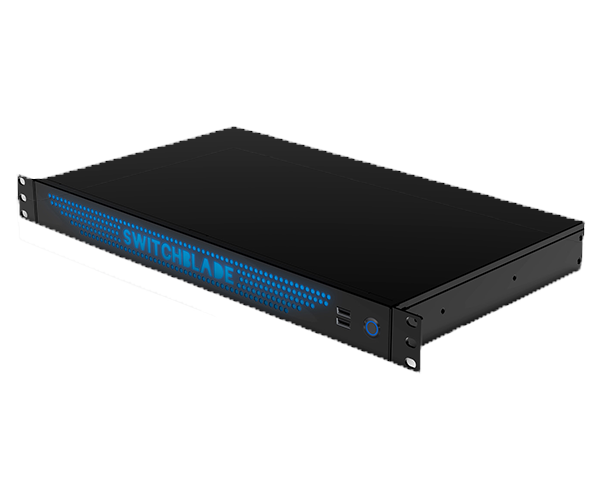

LPU1 |

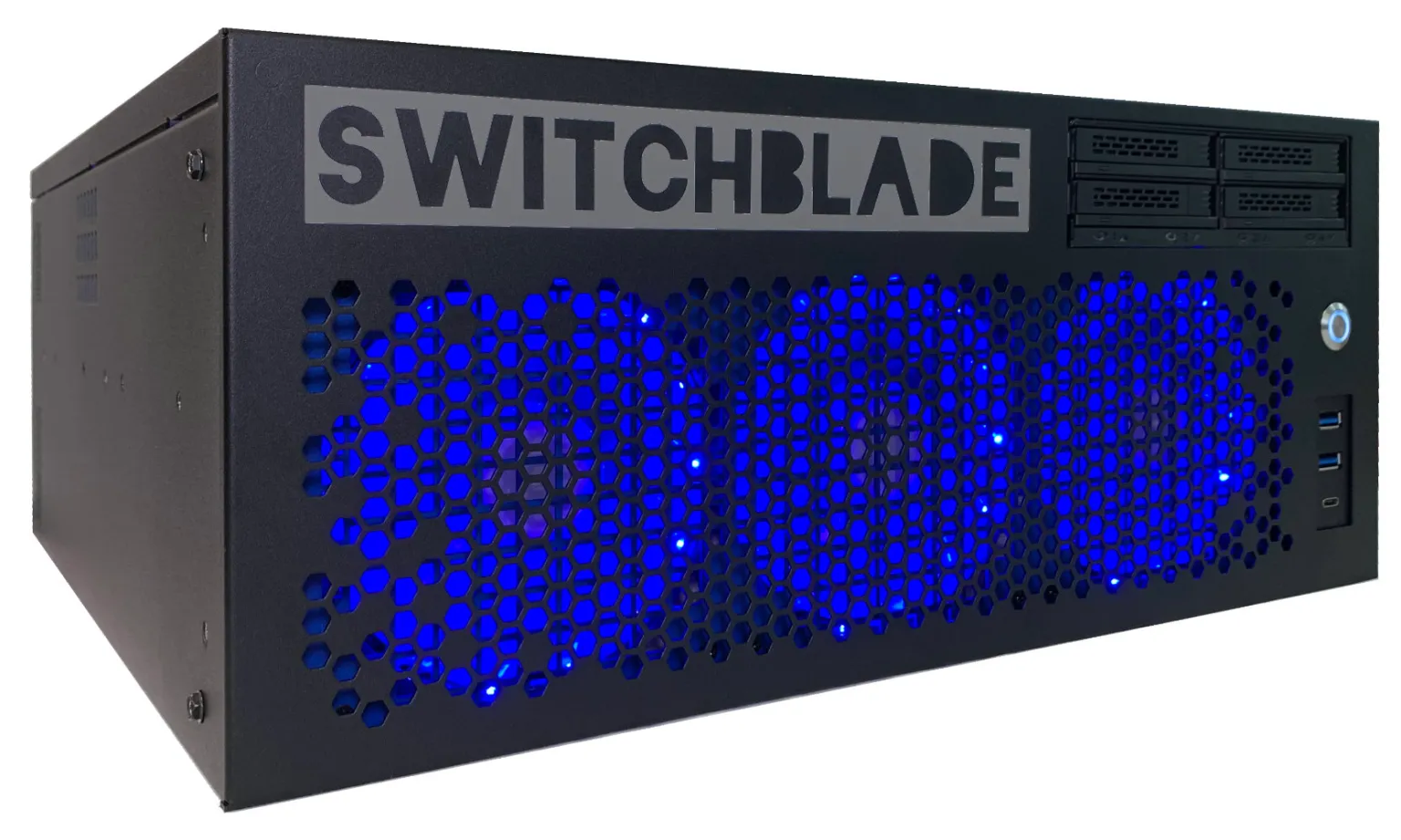

LPU4 |
LPU3 |
|
Chassis Height |
1U (1.75" / 44.45mm) |
4U (6.96" / 176.75mm) |
3U (5.25" / 133.35mm) |
|
Chassis Depth |
10" / 254mm |
16.89" / 429 |
20.8" / 528.32 |
|
Processor |
6-core AMD Ryzen |
10-core Intel Core i9 |
10-core / 18-core Intel Core i9 |
|
Graphics |
NVIDIA Quadro P2200 |
NVIDIA RTX A4000 |
NVIDIA RTX A4000 / A5000 |
|
Memory |
16GB DDR4 |
16GB DDR4 |
32GB / 64GB DDR4 |
|
Base Storage |
500GB SSD |
1TB SSD |
1TB SSD |
|
Networking |
1x 1GbE RJ-45, WiFi |
1x 1GbE RJ-45, Optional 10GbE fiber or copper |
2x 1GbE RJ-45, 2x 10GbE SFP+ (not populated) |
|
Video Inputs |
4x 3G-SDI |
Up to 12x SDI or HDMI inputs/outputs |
12x 3G-SDI + 4x 12G-SDI (bi- directional) |
|
Video Outputs |
None |
Up to 2x SDI Outputs |
2x 12G-SDI (uses 2x input channels) |
|
Audio Inputs |
1x 3.5mm line-in, 1x 3.5mm mic-in |
1x 3.5mm line-in, 1x 3.5mm mic-in |
2x XLR In (stereo pair), 1x 3.5mm line-in, 1x 3.5mm mic-in |
|
Audio Outputs |
1x 3.5mm line out |
1x 3.5mm line out |
2x XLR Out (stereo pair), 1x 3.5mm line out |
|
Software |
vMix HD |
vMix 4K |
vMix Pro |
|
Max Input Resolution |
1920 x 1080 |
4096 x 2160 |
4096 x 2160 |
|
Overlay Channels |
4 |
4 |
4 |
|
Recorder |
1 channel recording |
2 channel recording |
|
|
Streaming Outputs |
3 RTMP streaming outputs (Facebook, YouTube, custom URL) |
||
|
NDI Inputs |
Unlimited inputs (depending on video and project settings) |
||
|
NDI Outputs |
1 |
4 |
|
|
SRT Inputs |
Unlimited inputs (depending on video and project settings) |
||
|
SRT Outputs |
1 |
4 |
|
|
Fullscreen Outputs |
1 |
2 |
|
|
Remote Callers (vMix Call) |
1 caller |
4 callers |
8 callers |
|
Replay Channels (vMix Replay) |
N/A |
1 camera |
8 cameras |
|
Titling Software Included (All Versions) |
GT Designer Standard – Includes 100+ Built-In Animated Titles, Scoreboards, Tickers |
GT Designer Standard – Includes 100+ Built-In Animated Titles, Scoreboards, Tickers |
GT Designer Advanced – Build custom animated titles, including using layered Adobe PSD files |
|
Color Correction |
Professional color correction on every input, including lift, gamma, gain, luminance, hue, saturation with real-time vectorscope monitoring. |
||
|
Playlist |
Switch between multiple live inputs or prerecorded videos without manual intervention. |
||
|
Video List |
Create playlists of video files to play in sequence – a great way to stream prerecorded content when your event is offline. |
||
|
Scripting |
N/A |
Yes |
|
|
PTZ Control |
N/A |
Yes |
|

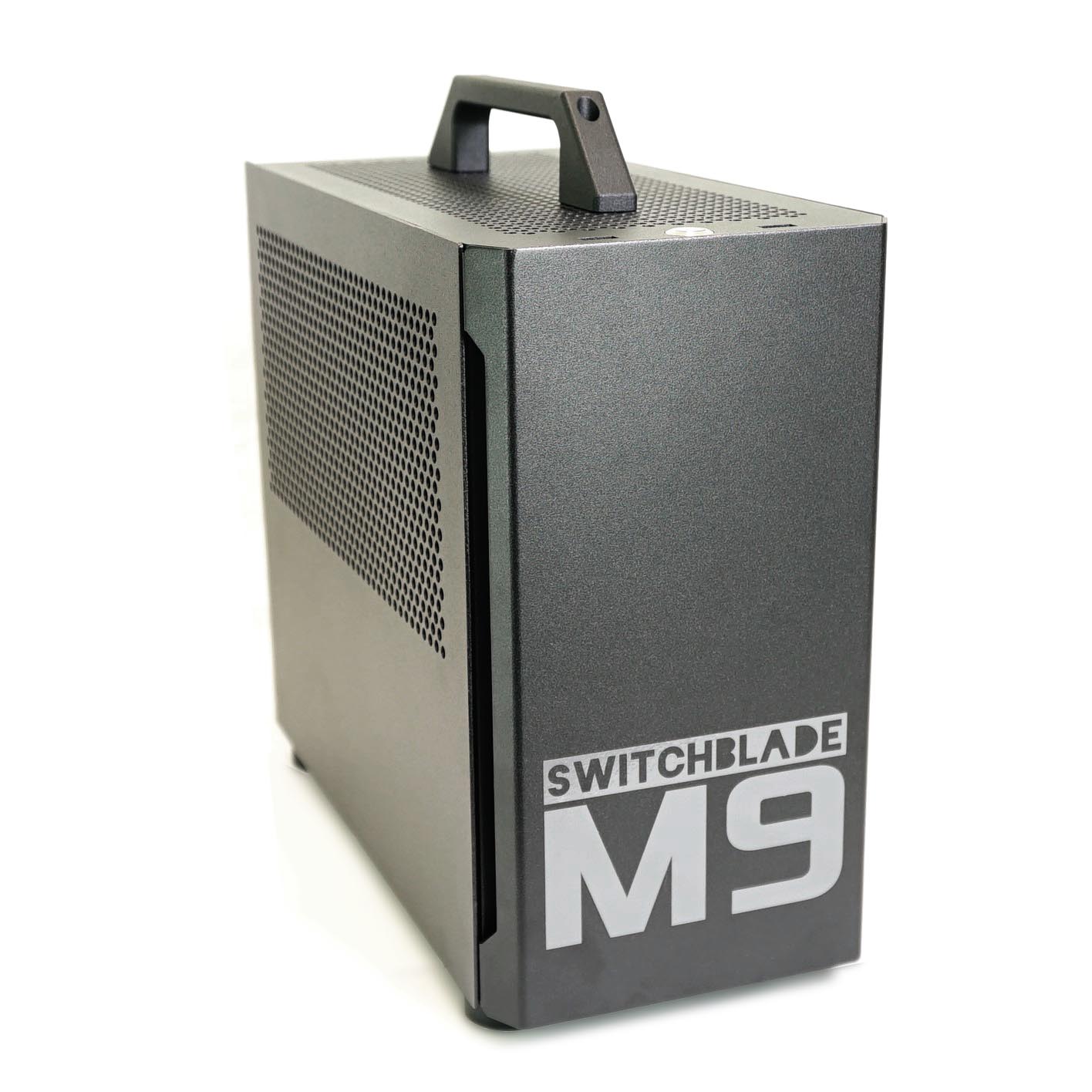

M9 Overview
M9 Portable Live Production System Powered By vMix
Surface Control
Skaarhoj's control surface does more than mix, it can control PTZ presets and much more.
NDI Powerhouse
We connect two Splyce in a 4 input SDI Switcher.
Amazing Features
Amazing features for any production.
Award-winning real-time switcher software for mixing: cameras, video, replays, remote interviews, and encoding.
TV studios are moving away from SDI infrastructure to save costs and increase flexibility. Each Switchblade system can encode and decode NDI.
Via API, RTMP, or UVC as well as YouTube, Twitch, or even any trio of platforms in different resolutions.
Switchblade systems are compatible with a wide range of control surfaces, including Skaarhoj, MIDI and USB Keyboard devices.
With NewBlueFX Titler Live, you get live templates and Complete gives you real-time power for social, sports and presentations.
Most production systems are limited in terms of the number of inputs, video players, graphics channels, and storage. Switchblade systems are flexible to meet those needs.
